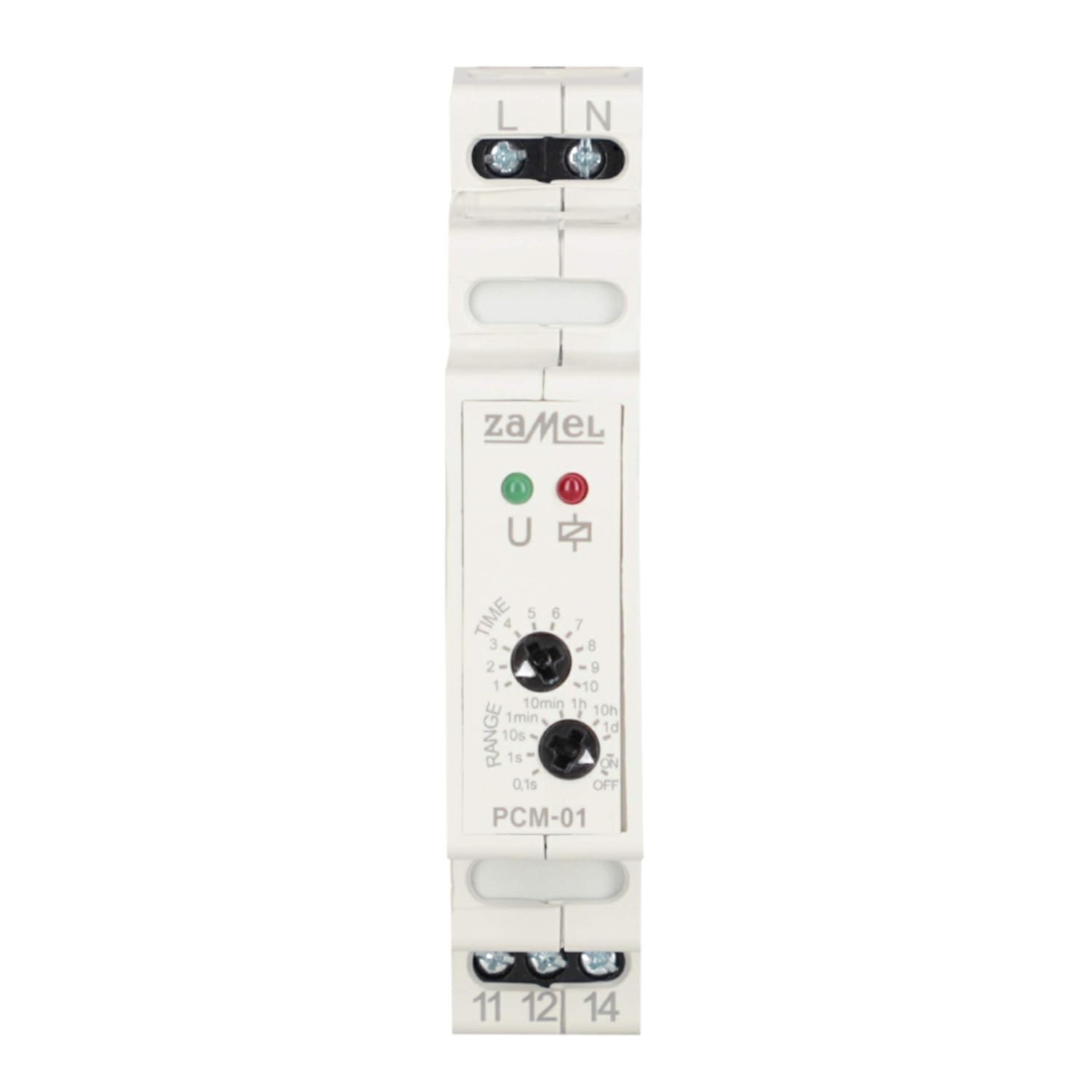

EXTA PCM-01 Time Relay 4000W 230V
5.0 (121 items)
Limited Time Sale$25.34 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 221598174 | Release Date | 2026/05/03 | List Price | $16.90 | Model Number | 221598174 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The 1-mode time relay PCM-01 has a delayed switch-on function (reversive) in automation and control systems, the relay is released by the supply voltage and has a large time setting range from 0.1 s to 10 days. The on/off functions allow constant switching on, switching off the output (load). The system has the indicators of the supply voltage, relay mode and time measurement with the help of the red LED diode. Commercial data (PCM-01) Dimensions monomodular (17.5 mm) 90 x 17.5 x 66 mm packaging 60 [pieces] Weight 75 g Technical data (PCM-01) input rated voltage 230 V AC max. Output voltage 250 V. Application category AC1 Max. Power of the relay 4000 VA relay contacts locking 1NO / NC time setting range 0.1 ÷ 1 s discreet 1 ÷ 10 s discreet 0.2 ÷ 1.7 min discreet 1 ÷ 10 min discreet 0.2 ÷ 1.7 h discrete 1 ÷ 10 min discreet 1 ÷ 10 min. h h Discreet 0.4 ÷ 4.2 days discreet 1 ÷ 10 days output relay 16 A rated input power 25 mA
- Timing relay for automation and control systems.
- Wide time setting range
- Additional on/off functions
| Model | PCM-01 |
|---|---|
| Wattage | 4000 watts |
| Brand Name | Zamel |
| Item Weight | 75 Grams |
| Part Number | PCM-01 |
| Contact Type | 1no / Nc |
| Manufacturer | Zamel Sp. z o.o. |
| Mounting Type | Hutschienenmontage |
| Connector Type | Schraube |
| Item Type Name | TIME RELAY |
| Operating Time | 10 Days |
| Operation Mode | Automatisch |
| Included Components | TIME RELAY |
| Number of Terminals | 2 |
| Global Trade Identification Number | 05903669006206 |
