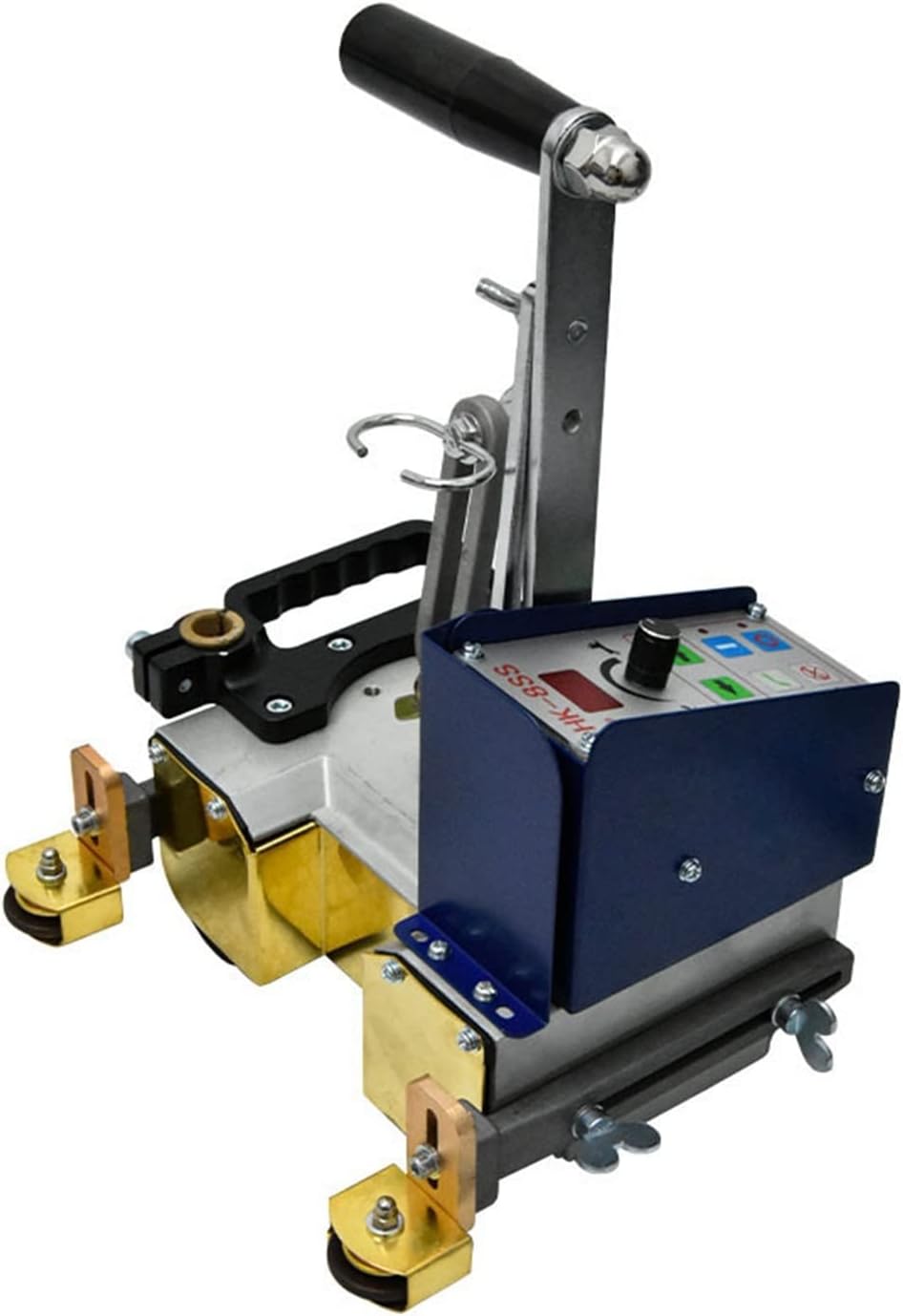

HK-8SS Portable Automatic Magnetic Automatic Welding Trolley Fillet Welding Machine Steel Structure Angle Welding Trolley Heavy Duty Welding Welder Cart 22W,DIY Tools

Specifications:Name: HK-8SS portable automatic magnetic fillet welding trolleyPower supply voltage: input 220V/ output DC24VPower: 22wMotor speed ratio: 2000 rpmAdsorption: 10-25kgWelding speed: 150-900mm/minAdjustable range of welding gun: 50mmOperating angle of welding gun adjustment range: ±45°Angle of welding gun adjustment range: 10°Rotation angle of welding gun adjustment range: 360°Package list:1. Host x1pc2. 1 set of DC24 power supply3. Three-pin (connecting wire 20m) 1 set4. Two-core (connecting torch cable 5m) 1 set5. Insurance 3Ax3pcs6. Allen wrench (M3, M4, M5, M6) eachHK-8SS is composed of trolley body, X-Y bone block, guide wheel, welding torch handle, welding torch swinger, control box and other components.The body part of the trolley: it is the skeleton of the whole machine and the carrier of other parts.1. Control Panel2. Control box: can adjust all the actions of the car3. Lifting hand handle: Pull this handle when moving the machine.4. X-Y moving block: a device for adjusting the position of the welding torch. During welding, the welding torch can be fine-tuned up, down, left, and right.5. Plastic handle6.Guide wheel rod7. Walking wheel8. Base9. Instructions for the panel of the motor cover.10. Welding gun holder assembly: It is the holding device of the welding torch, which can be easily repaired, adjusted and disassembled.11 welding gun12. Insulation check board13. Guide wheel: a device that rolls along the surface of the base material to guide the precise welding position.1. Control Panel2. Control box: can adjust all the actions of the car3. Lifting hand handle: Pull this handle when moving the machine.4. X-Y moving block: a device for adjusting the position of the welding torch. During welding, the welding torch can be fine-tuned u

• 1. Control Panel
• 2. Control box: can adjust all the actions of the car
• 3. Lifting hand handle: Pull this handle when moving the machine.
• 4. X-Y moving block: a device for adjusting the position of the welding torch. During
• welding, the welding torch can be fine-tuned up, down, left, and right.
• 5. Plastic handle
